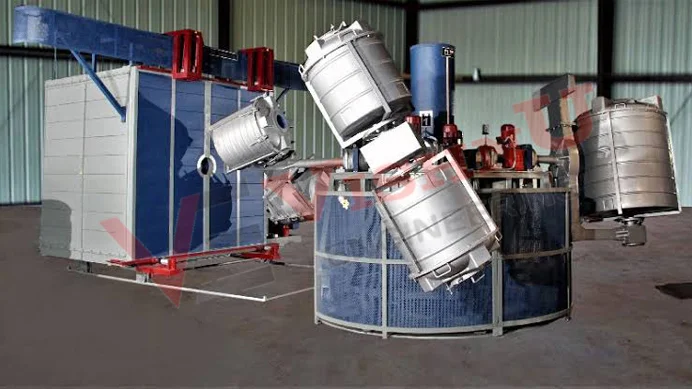

Vishnu engineering ‘s Four arm bi axial Rotational Moulding Machines are considered as rotational molding industries workhorse. Always used for manufacturing various capacities or component at a time. Same as three arm heating, cooling and loading cycles function in a synchronized manner to give combination of productivity and fuel efficiency. Four arm machines do give same productivity as three arm but you can mount variety of molds at time on four arm save the time to change the moulds.
We at Vishnu engineering , add value to these machines by state of art design process. Feedback from our numerous customers helps us to offer better fuel efficiency & productivity. We offer most economical solutions for producing tanks from 500 litres to 10,000 litres capacity on our four arm range of machines.
This machine Provides the Latest Technology at a very low cost
Oven wall insualted with cera wool material to avoid heat losses
Can be achieved high production in lower time and lower fuel due to Four arm machine
Completely advanced mechanism for opening and closing the oven door.
This moulding machine has an electronically controlled burner , it can automatically off and on system that reduced fuel consumption
Bi-Axial Rotation: Ensures even material distribution and uniform wall thickness
Control System: Easy-to-use interface for temperature, timing, and rotation control and many more.
Imported Energy efficient burner suitable for LPG and DIESEL fuel
After the heating process, it also Cool the produced design with natural Air by our high speed cooling fan
It has advanced technology of sensors that controls the individual arm movement.
Has Specially designed spiral gears for arms with Large loading capacity.
| MODEL | UNIT | ROTO 4 2000 (upto 2,000 Litre) |
ROTO 4 5000 (upto 5,000 Litre) |
ROTO 4 10000 (upto 10,000 Litre) |
|---|---|---|---|---|
| NO OF ARMS | (NOS) | 3 STRAIGHT + 1 OFFSET | 3 STRAIGHT + 1 OFFSET | 3 STRAIGHT + 1 OFFSET |
| MAXIMUM TANK SIZE (VERTICAL) | (LITRE) |
2000 X 1, 1500 X 1, 1000 X 2, 750 X 2, 500 X 4, 300 X 4 NOS |
5000 X 1, 2000 X 2, 1000 X 4, 750 X 4, 500 X 6, 300 X 6 NOS |
10000 X 1, 5000 X 1, 2000 X 4, 1000 X 6, 750 X 6, 500 X 8, 300 X 8 NOS |
| FUEL | Diesel / LPG | Diesel / LPG | Diesel / LPG | |
| TOTAL LOAD | (HP) | 31 | 34 | 56 |
| DIMENSION | (METER) | 13.5 * 11 * 6 | 17 * 13 * 6 | 18 * 15 * 8 |
